With Entity Framework Core comes the great opportunity to improve upon EF’s legacy by incorporating all the lessons we’ve learned over the past few years of developing this software. For me, that means a chance to improve on one of the first features I worked on after joining the team over four years ago: Code First Migrations’ NuGet Commands. In this post, I want to talk about some of the improvements to these PowerShell commands.

Boxes and Lines

I want to start by talking about the design. Let’s examine the current implementation that has been used since version 4.3 and talk about the motivation behind it.

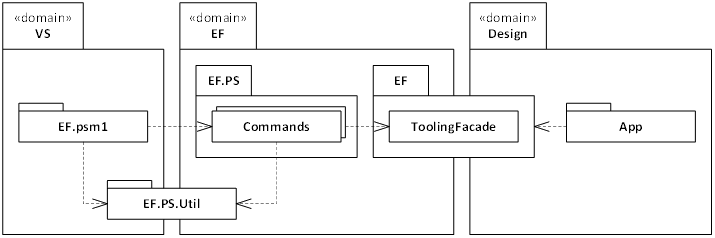

EF 4.3 Design

EF 4.3 NuGet Commands Design

Let’s walk through it going from left to right. We start with the PowerShell module (EntityFramework.psm1) which is hosted in the main Visual Studio AppDomain. These call into the command classes which are contained in EntityFramework.PowerShell.dll. Originally, this was all done inside the VS domain, but we found that since the PowerShell assembly was being locked, the EntityFramework NuGet package could not be uninstalled or updated. To solve this, we delayed loading any assemblies until you invoked a command. We also loaded them inside a seperate domain so that they could be unloaded later. Unfortunately, there were some things that couldn’t be done outside of the main VS domain, and we had to add EntityFramework.PowerShell.Utility.dll to perform cross-domain communication. So, we were still locking an assembly, but it was done lazily. This worked pretty well until EF6 when we started calling PowerShell commands when the NuGet package was installed. This took us right back to where we started with not being able to uninstall or update. We needed a better design.

Let’s continue walking through the design. The command classes called into the ToolingFacade class (contained in EntityFramework.dll) which loaded the user’s application into another AppDomain. The purpose of this domain was to mimic the runtime environment as much as possible so that when we invoked the DbContext and Migrations code, it would behave as the user expected.

How has all of this been improved in EF Core?

EF Core Design

EF Core NuGet Commands Design

We still start in a PowerShell module (EntityFramework.psm1). The PowerShell module is now responsible for creating the runtime-like AppDomain for hosting the user’s application. It also takes care of doing things that need to be done inside the VS domain. We still need cross-domain communication, but instead of loading the same types on both sides of the boundary like we use to with EntityFramework.PowerShell.Utility.dll, We’ve created a new class called ForwardingProxy. I had to delve pretty deep into the dark world of .NET Remoting (my wound from the Morgul-blade still aches from time to time), but I found a way of invoking methods on a type that isn’t loaded. The target type on the VS side of the boundary is loaded from source using the Add-Type cmdlet. The problem of locking assemblies was finally solved!

The PowerShell module calls into the Executor class which is a thin, cross-domain-friendly wrapper over the MigrationTool class which invokes code inside the user’s application (via Reflection).

Shiny River Rocks

In addition to a new design, we’ve also made some small productivity enhancements to give the experience a nice polished feel.

Tab Expansion

When working on projects with multiple DbContext classes, you had to specify which DbMigrationsConfiguration class to use every time you invoked a command. This annoyed @lukewaters greatly. (He’s a tester on our team.) To make this easier, we’ve enabled tab expansion of DbContext classes and migration names.

EF Core NuGet Commands Tab Expansion

Use-DbContext

We went one step farther and added the Use-DbContext command. This command allow you to specify a default DbContext to use for the current PowerShell session. I like to call this the Luke command.

Use-DbContext UnicornContext
Add-Migration TwentyPercentCooler

Less Is More

While playing around with the new commands, you may notice that a few commands and many parameters have been removed. We’ve made some design changes to Code First Migrations to enable this, and I’ll cover those in a future post. There is, however one change worth mentioning in this post.

The Update-Database command has been split into two new commands.

  • Update-Database just applies migrations to the database
  • Script-Migration generates a SQL script to apply the migrations to the database

New Platforms

EF Core is being built for new platforms including the Universal Windows Platform. I’m happy to say that, in addition to the Windows Desktop projects, the commands will also work with Universal Windows projects.

Feedback

As always, please let us know what you think about this and other Entity Framework Core features by commenting on our blog posts, tweeting us, or submitting new issues.
